- Available for use at 100 start/stop locations across the network
- Steel construction for strength and durability
- Options for radial tires and LED lights

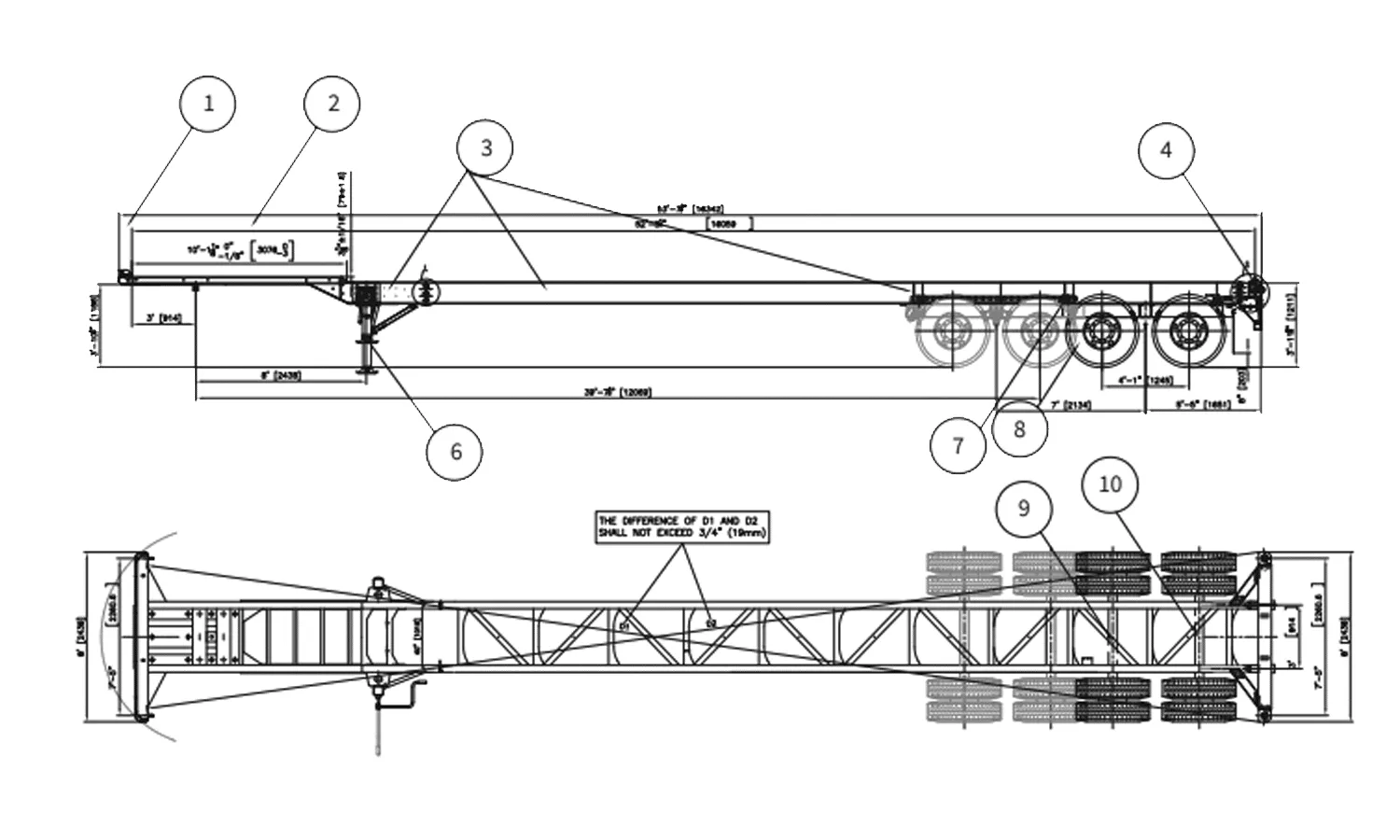

53 Ft Domestic Chassis
Key Benefits
Download Brochures
Please note: The below specifications and features are typical of DCLI’s fleet and not for any specific chassis. If you need exact specifications for a particular piece of equipment, please contact chassisspecs@dcli.com. *Table is best viewed in landscape on mobile
Chassis Specifications and Features
| Function |
|---|
| Carries one (1) 53' Domestic ISO container. Meets all TOFC, AAR, DOT, FMVSS, ANSI, SAE, and TTMA specifications |
| General | |
|---|---|
| Overall Length | 53' 7" (excluding rear bumper) |
| Overall Width | 96" |
| Fifth Wheel Height | 48"±1" |
| Rear Deck Height | 48"±1" |
| Kingpin Location | 36" (from rear face of front bolster) |
| Axle Spread | 49" |
| Tandem Location | The tandem sliding range allows the distance between the center line of the king pin and the rear axle to be less than 40’ (California / Rhode Island Regulation) |
| Tare Weight | 7,450 Lbs (±2%) |
| Steel Structure & Components | |
|---|---|
| Material | High-strength GR50 steel |
| Crossmember | 1/8" x 3" wide x 9" deep channel |
| GN Beam | 4” deep fabricated I-beam, 4” wide 5/8” thick top and bottom flange, Grade 80 steel |
| Rear Bolster | 8" wide x 3/8" thick top plate with 6-7/8" wide x 1/4" thick “U” channel |
| Suspension | Sliding mechanical |
| Axles | 5" round axles with 22,500 lb capacity, 71-1/2" track, 16-1/2” x 7" Q Brake |
| Electrical | 12 volt |
| Miscellaneous | Standard marking, Conspicuity tape, Document holder, 24" X 24" rubber mud flap |
