20 Ft 40 Ft Combo Tandem Chassis

20/40 Foot

Combo Tandem Chassis

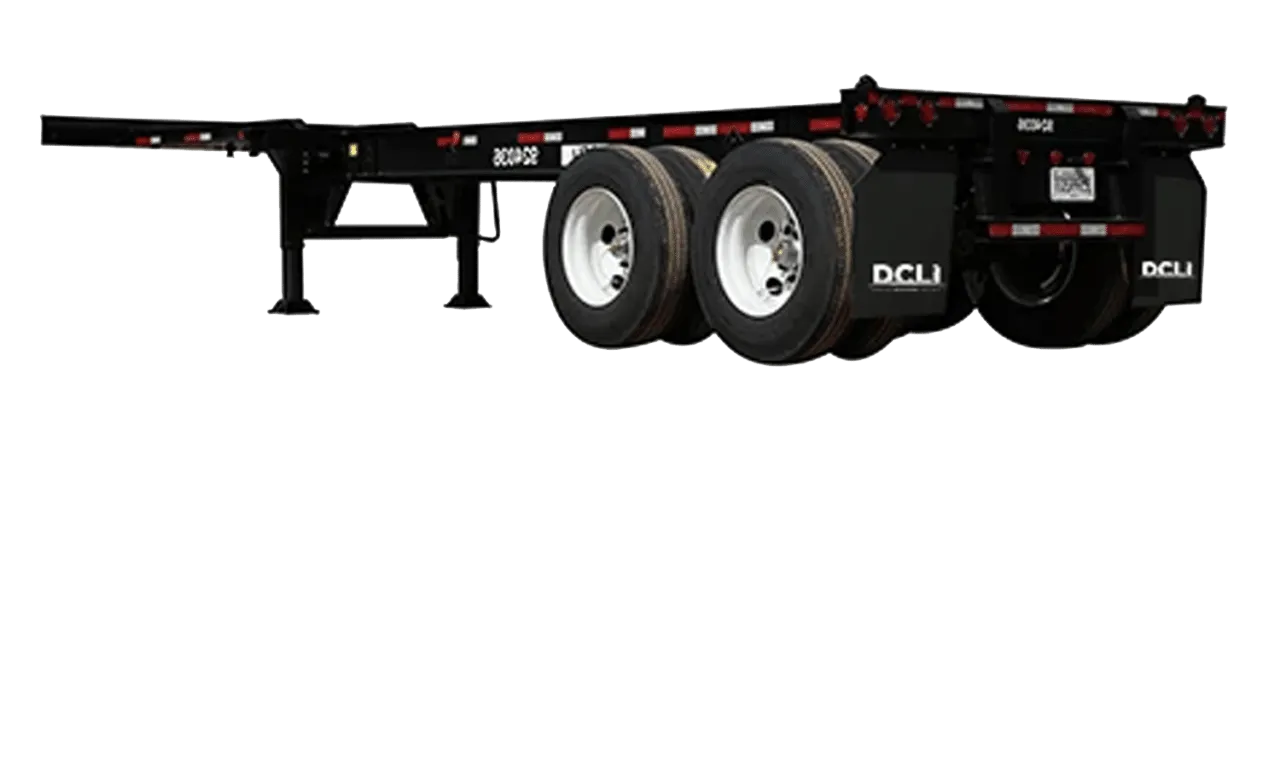

Additional Views

Request a quote

KEY BENEFITS

DRAG TO SEE MORE

This chassis can carry one 20-foot or one 40-foot ISO container (loaded or empty)

Flexible

This chassis is available for long-term lease. Please contact sales@dcli.com for more information.

DCLL

Comes standard with new radial tires, auto tire inflation system, anti-lock braking system, and LED lights. You have the option to add GPS.

Upgraded

DETAILS

Please note: The below specifications and features are typical of DCLI’s fleet and not for any specific chassis. If you need exact specifications for a particular piece of equipment, please contact chassisspecs@dcli.com.

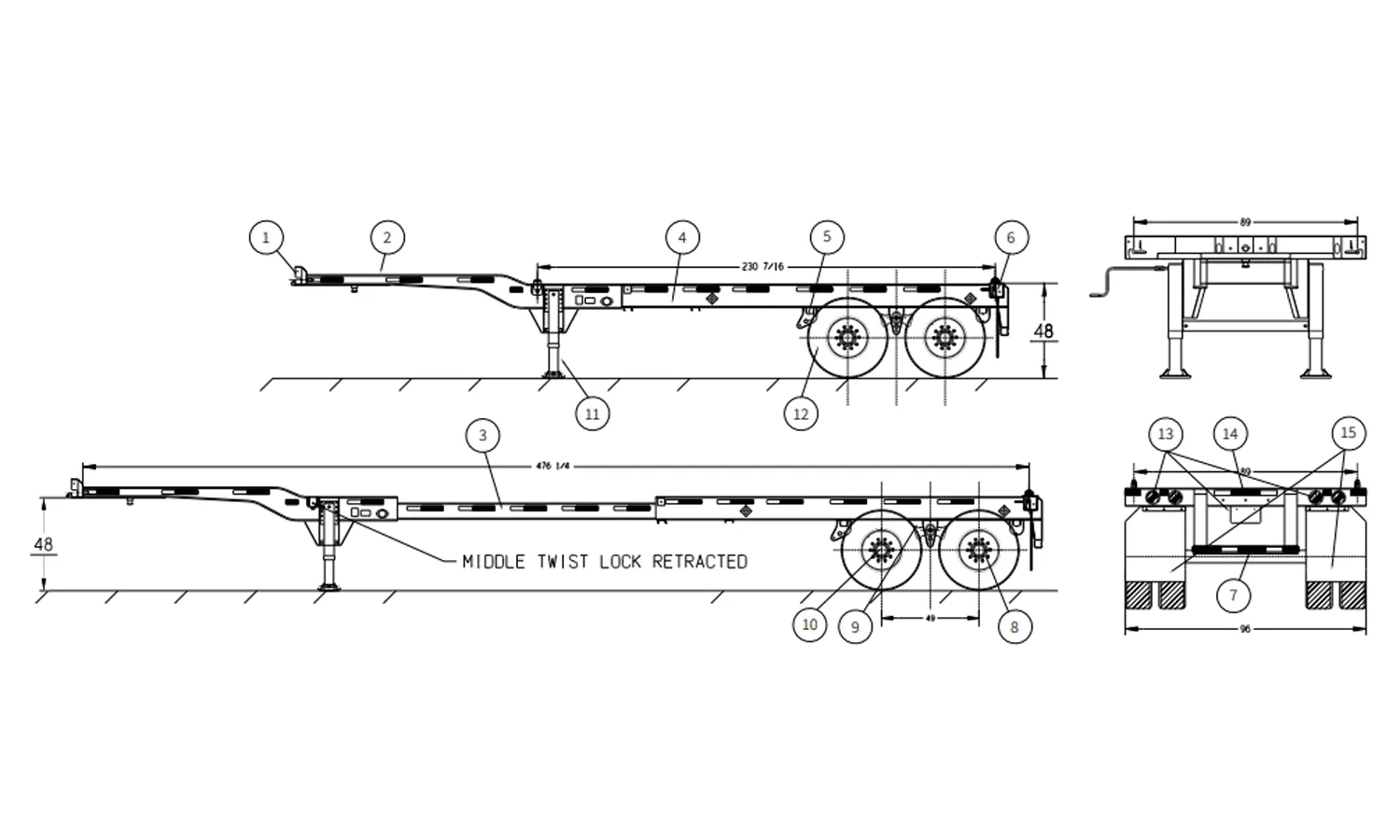

Chassis Specifications 20'/40' Combo Tandem Detailed Specifications

Specifications

Overall Length

40'6" (extended) 30'6" (closed)

Overall Width

96"

Fifth Wheel Height

48"

Rear Deck Height

47 ½"

Landing Gear Location

Two-speed 17" travel w/ low pro sandshoe

Kingpin Location

30" (face of bolster)

Axle Spread

49" (tandem)

GVWR

75,000 lbs.

Material

Main rails are of high strength low alloy steel; all others are of ATSMA572 grade 50

Crossmember

Fabricated crossmembers

Suspension

Tandem axle 72" spacing / three leaf springs

Axles

71 ½" track, 22,500 lbs. each rated w/ PSI ATIS

Electrical

12-volt w/ modular wiring and plug type connectors
