40 Ft Container Chassis

40 Foot

Gooseneck Chassis

This 40 foot gooseneck is one of many types of marine chassis equipment in our fleet.

Additional Views

This 40 foot gooseneck is one of many types of marine chassis equipment in our fleet.

Request a quote

KEY BENEFITS

DRAG TO SEE MORE

The 40' gooseneck chassis is the workhorse of our fleet. It carries one 40' ISO container.

The Workhorse

Available for use in pools across the country and for longer-term lease.

DCLP or DCLL

Steel construction for strength and durability.

Strength

Options available for lights, tires, GPS and refurbishment.

Customizable

DETAILS

Please Note: The below specifications and features are typical of DCLI’s fleet and not for any specific chassis. If you need exact specifications for a particular piece of equipment, please contact chassisspecs@dcli.com.

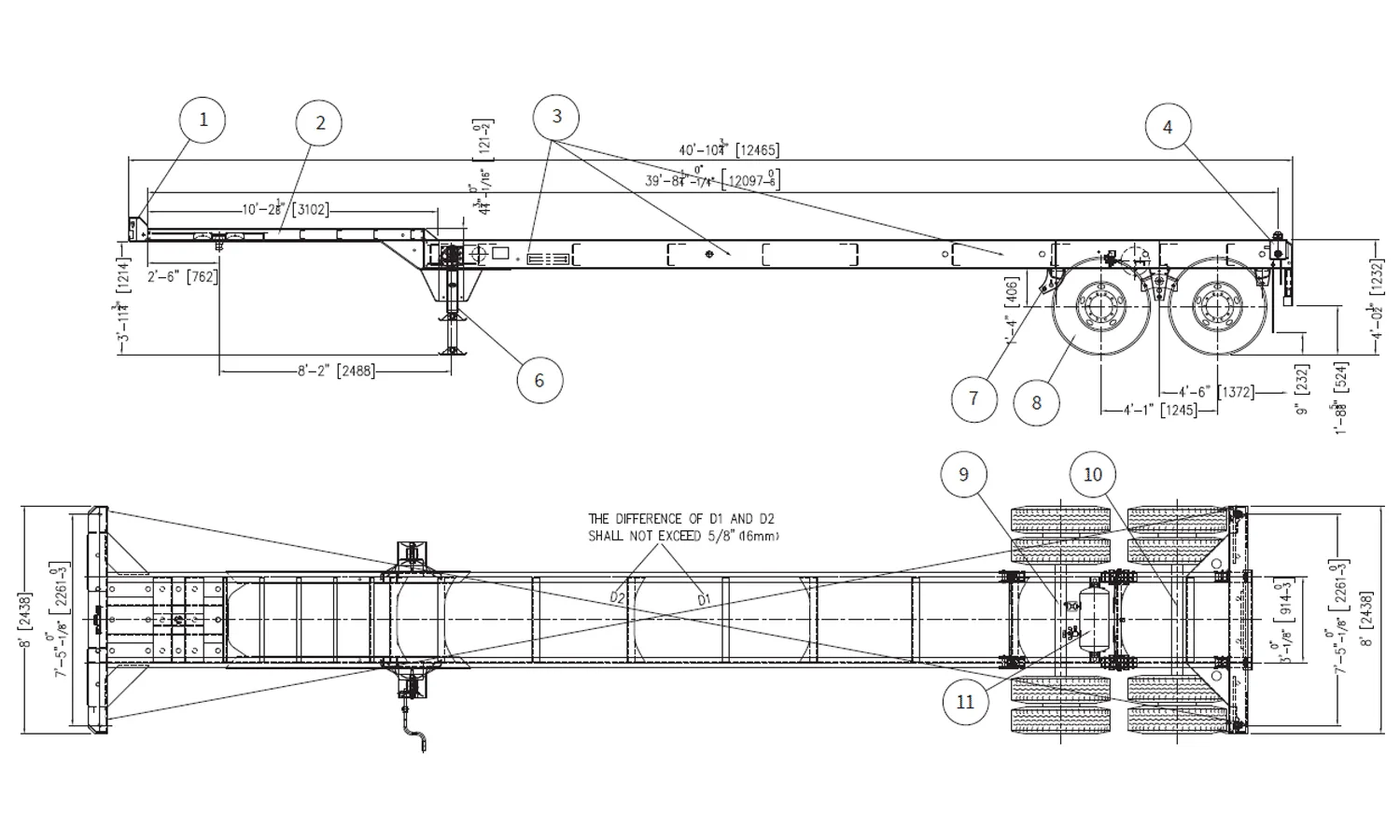

Chassis Specifications 40 Foot Chassis Detailed Specifications

Specifications

Overall Length

40' 8" (excluding rear bumper)

Overall Width

96"

Fifth Wheel Height

48"±1"

Rear Deck Height

48"±1"

Kingpin Location

30" (from rear face of front bolster)

Axle Spread

49" (from rear face of front bolster)

Tandem Location

54" (from rear face of front bolster)

Tare Weight

6,700 lbs (±2%)

Material

High-strength GR50 steel

Crossmember

3/16" x 3" wide x 9" deep channel

Suspension

Mechanism suspension

Axles

5" round axles with 22,500 lb capacity, 71-1/2" track, 16-1/2” x 7" Q Brake

Electrical

12 volt

Miscellaneous

Standard marking, Conspicuity tape, Document holder, 24" X 30" rubber mud flap
