45 FT Gooseneck Chassis

45 Foot

Gooseneck Chassis

Additional Views

Request a quote

KEY BENEFITS

DRAG TO SEE MORE

This chassis carries one 45-foot ISO container.

Container Load

This chassis is available for long-term lease of for daily use from chassis pools nationwide.

DCLL or DCLP

Steel construction for strength and durability.

Strength

Options available for lights, tires, GPS, and refurbishment.

Customizable

DETAILS

Please Note: The below specifications and features are typical of DCLI’s fleet and not for any specific chassis. If you need exact specifications for a particular piece of equipment, please contact chassisspecs@dcli.com.

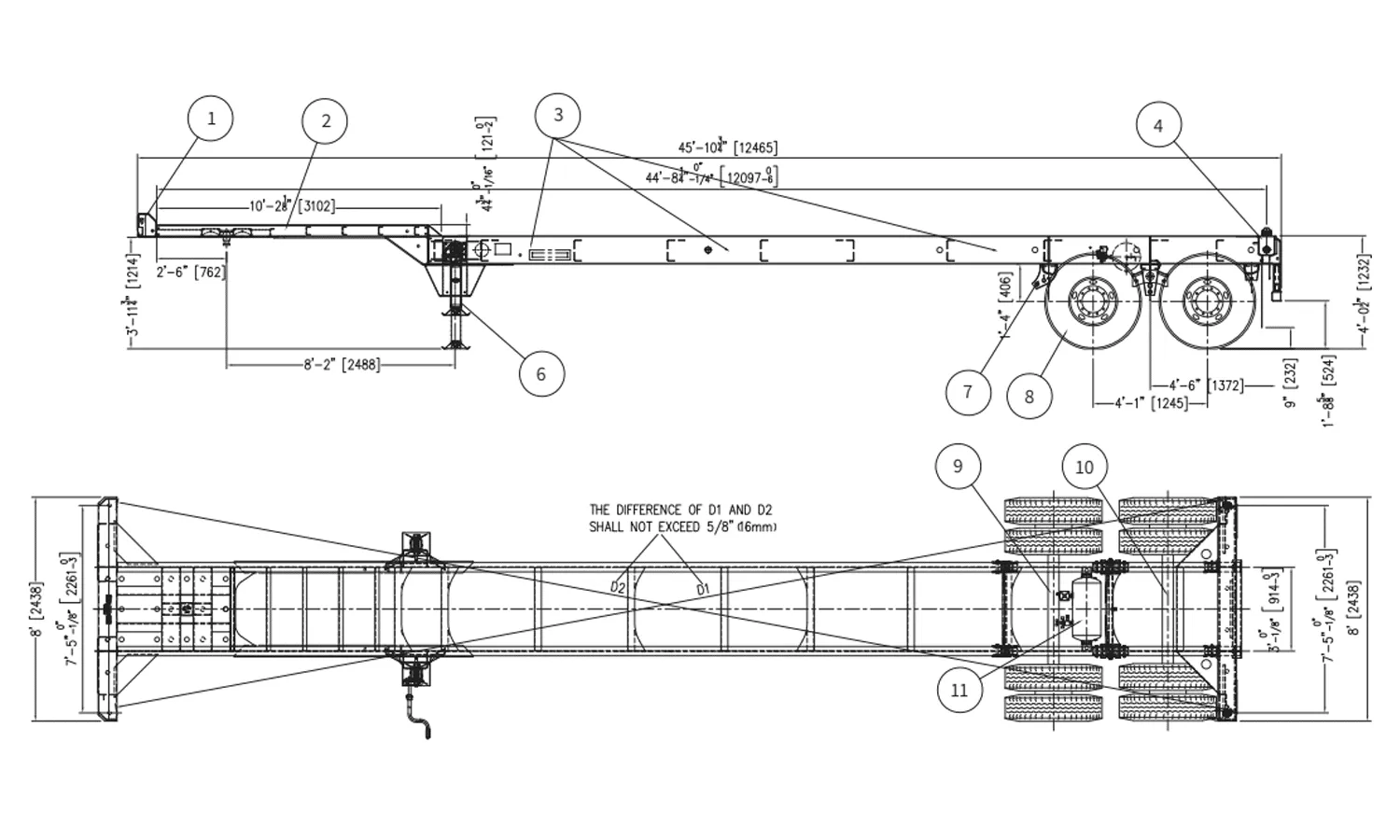

Chassis Specifications 45 Foot Detailed Chassis Specifications

Specifications

Overall Length

45' 6"(excluding rear bumper)

Overall Width

96"

Fifth Wheel Height

48"±1"

Rear Deck Height

48"±1"

Kingpin Location

30" (from rear face of front bolster)

Axle Spread

49" (from rear face of rear bolster)

Tandem Location

54" (from rear face of rear bolster)

Tare Weight

7,000 Lbs (±2%)

Material

High-strength GR50 steel

Crossmember

3/16" x 3" wide x 9" deep channel

Suspension

Mechanism suspension

Axles

5" round axles with 22,500 lb capacity, 71-1/2" track, 16-1/2” x 7" Q Brake

Electrical

12 volt

Miscellaneous

Standard marking, Conspicuity tape, Document holder, 24" X 30" rubber mud flap
