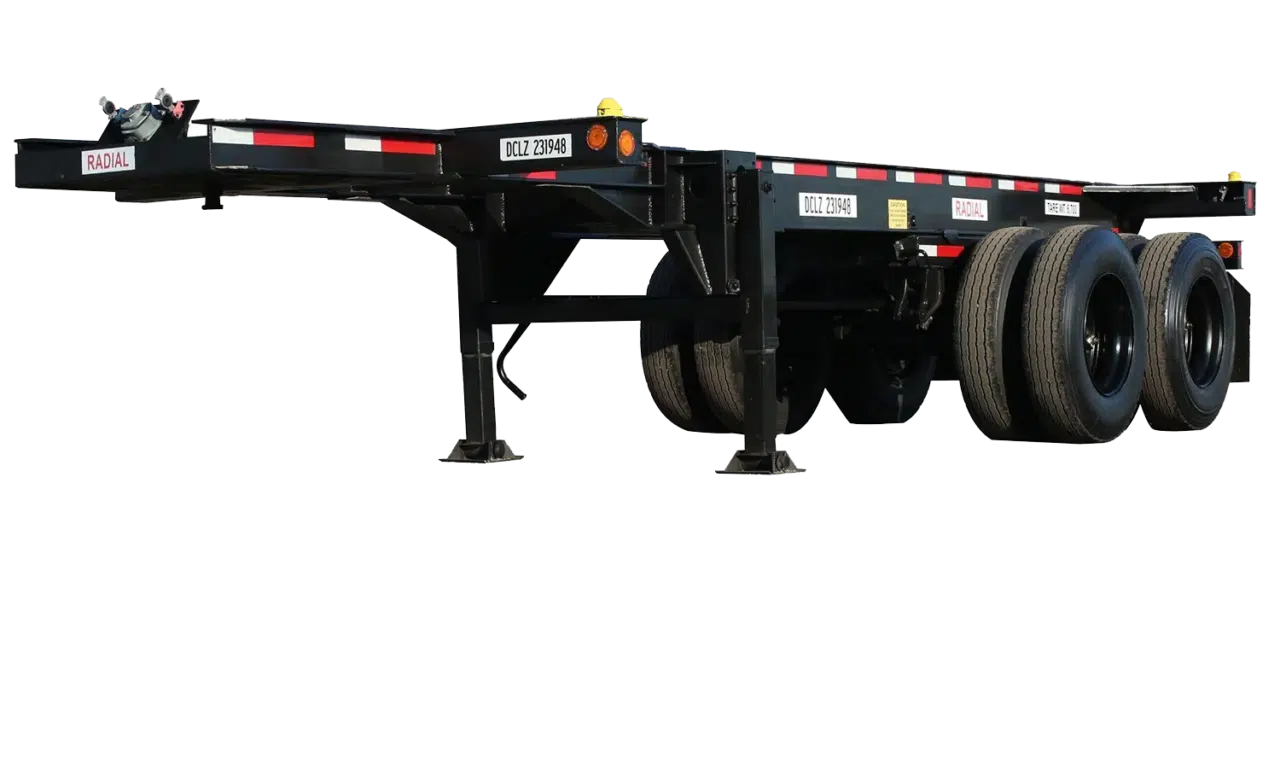

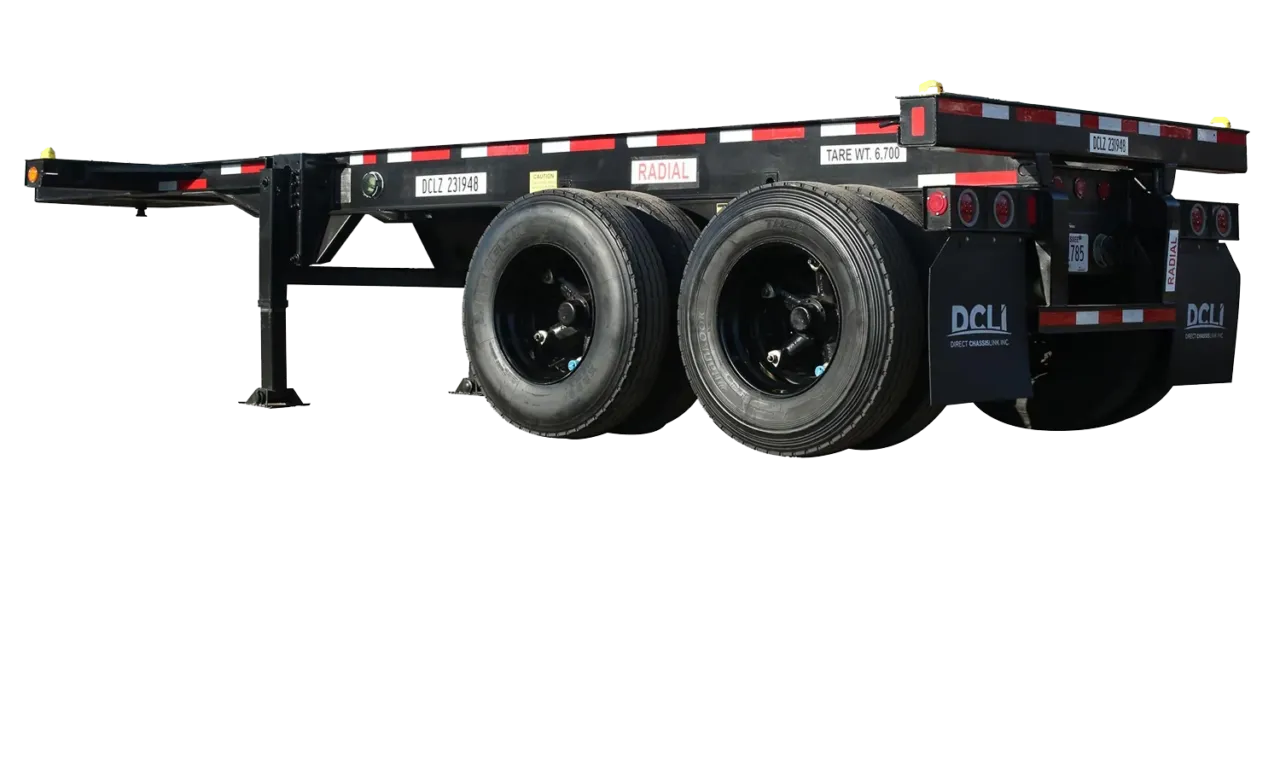

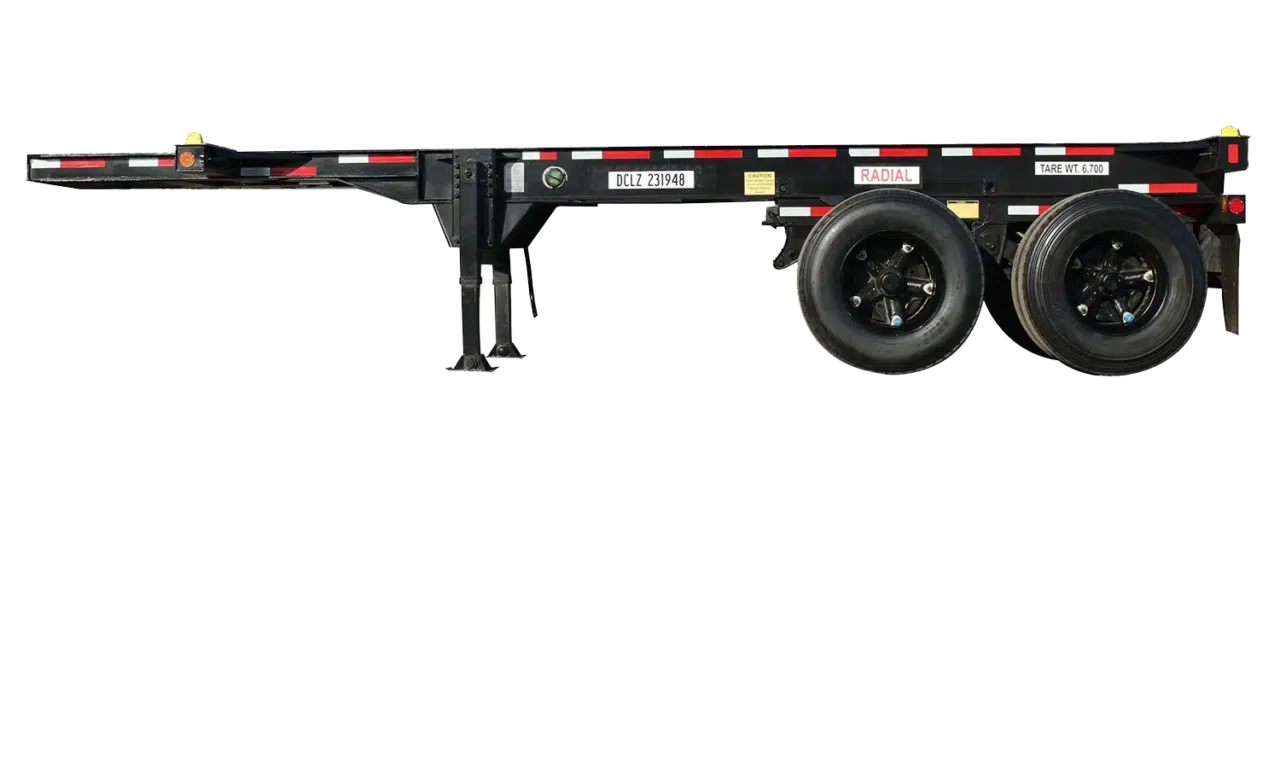

23.5 Ft Slider Chassis
KEY BENEFITS
DRAG TO SEE MORE
This slide chassis carries one 20-foot ISO container.
Container Load
![]()
This chassis is available for long-term lease and for daily use at chassis pools nationwide.
DCLL or DCLP
![]()
Options available for lights, tires, GPS, and refurbshment.
Customizable
![]()
DETAILS
Please Note: The below specifications and features are typical of DCLI’s fleet and not for any specific chassis. If you need exact specifications for a particular piece of equipment, please contact chassisspecs@dcli.com.
Chassis Specifications

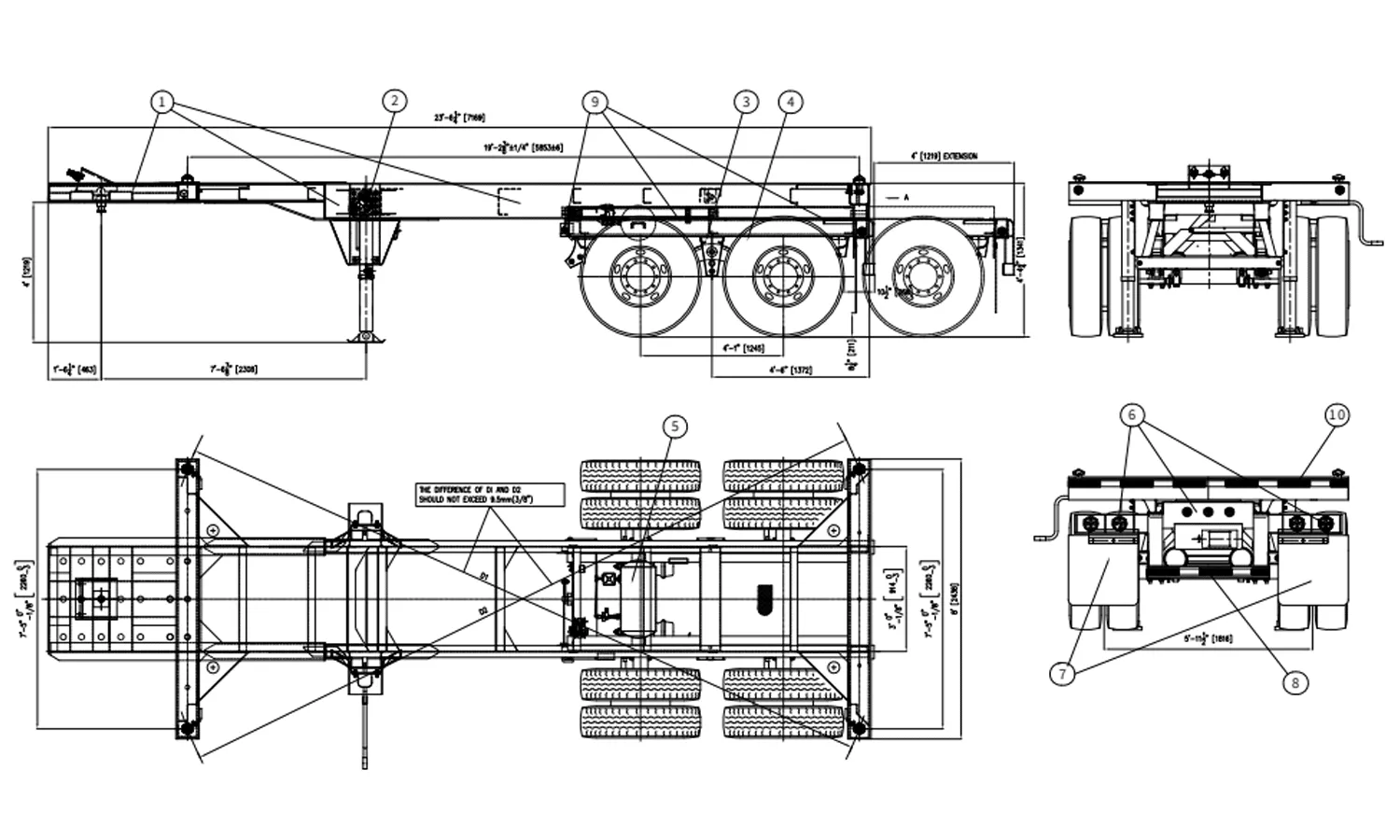

23.5 Foot Slider Detailed Chassis Specifications
Specifications
Overall Length
23' 6"/27' 6" (excluding rear bumper)
Overall Width
96"
Fifth Wheel Height
48"±1"
Rear Deck Height
52"±1"
Kingpin Location
18" (from front end of chassis)
Axle Spread
49"
Tandem Location
54" (from rear face of rear bolster)
Tare Weight
6,700 Lbs (±2%)
Material
High-strength GR50 steel
Crossmember
Fabricated channel
Slider
Tubular with positive safety solid bar stop. Two spring loaded pins lock the slider frame to main frame in retracted or extended location
Upper Coupler
1/4" thick w/ 2" diameter drain holes, reinforced by channel-type kingpin support. 2" AAR certificated kingpin
Suspension
Mechanism suspension with three leaf spring
Axles
5" round axles with 22,500 lb capacity, 71-1/2" track, 16-1/2” x 7" Q Brake
Electrical
12 volt lighting system with modular wiring harness
Miscellaneous
Standard marking, Conspicuity tape, Document holder, 24" X 24" rubber mud flap
